Internal

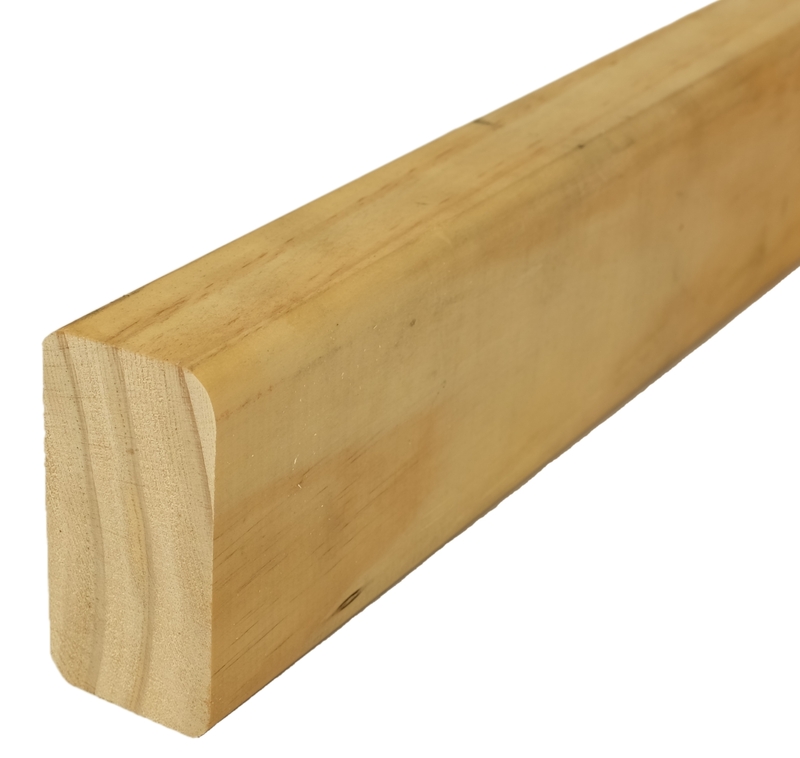

Ceiling & Tile batten is on offer as part of our internal range of products we can manufacture.



Description Size (mm) Treatment / Grade Length Pack Size Notes
CEILING BATT 68x32 H1.2 P/G 4.8m / custom 220 pcs
Description Size (mm) Treatment / Grade Length Pack Size Notes
TILE BATT 50x40 H3.2 R/S 5.4m / 6m Random

GRADING GUIDELINES FOR RADIATA PINE

No.1 Clear Grade

Clear on all four faces with the occasional minor blemish permissible as per N.Z. Timber Grading Rules NZS 3631:1988. Typical end uses include mouldings, dressed boards, panelling, and products that require a stained finish.

Prem Grade

A near clear grade used in decking which allows for a small number of tight defects on the best face and edges. Backface allows occasional large or broken knot defects and some hit and miss dressing.

SG8 Dry

SG8 dry is a structural grade ex pruned log that allows tight and live knot defects. Suitable for Lintels, floor joists, roof beams, general framing, trusses, decking joists, Verandah posts, Pergola and other outdoor applications.

Merchant Grade

Contains the next layer of wood beyond the core of the log. Grading allows heartwood and any number of knots and defects which are generally sound and tight (inter-grown). Grading allows for a small amount of pith (less than 10% of the length), cone hole, needle trace, light to moderate resin, light blue stain and wane on up to 30% of the edge. Cluster and spike knots are allowed as long as structurally sound. Grading does not allow pith (greater than 10% of length), dead knots, decaying timber and broken pieces.

Industrial OR Boxing Grade

Contains the core (pith) of the log and surrounding heavy heartwood zone.  Grading allows any amount of pith, spiral grain, large knots, broken knots, spike and cluster knots. Grading allows cone hole, needle trace, resin pockets, moderate blue stain and wane on 50% of edges. Grading does not allow decay, broken and fallen knots bigger than half the width, heavy blue stain, and pieces of timber that do not hold together (are not structurally sound).



H3.1 --- Outside, above ground, periodic wetting but where the timber can dry out; some leaching. Requires painting for ongoing protection.

H3.2 --- Outside above ground, periodic wetting but where the timber can dry out; some leaching

H4 --- In or on the ground subject to severe wetting and leaching

H5 --- In or on the ground subject to severe wetting and leaching, with or in freshwater

WAT --- Wet After Treatment

UT --- Untreated

GS --- Green Sawn

KD --- Kiln Dried

R/S --- Rough Sawn

DAR --- Dressed

D4S --- Dressed four sides

RHD --- Rougher Headed

P/G --- Planer Gaued

G/T --- Grip Tread

T & G --- Tongue & Groove



Product Gallery
